Product Code: 130-38-30
Availability: 2

Available Options

Voltage_130-38-30:
115 Volt (130-38-30)
230 Volt (130-38-35)

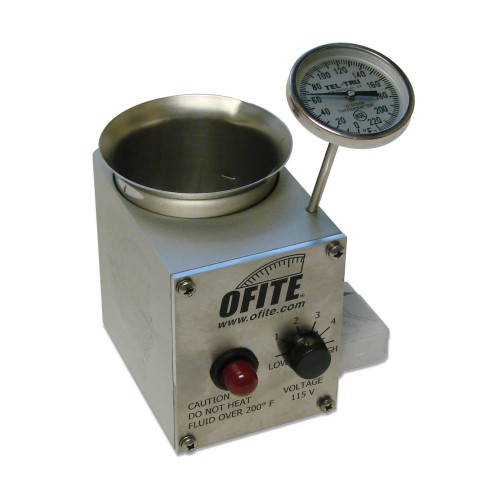

The Thermocup is designed for controlling the temperature of a mud sample while taking readings with a viscometer. The holes in the stage of OFITE Viscometers have been positioned to hold the heated cups at a 45° angle to the line of the instrument for better accommodation of thermometers and power cables. A removable stainless steel cup (included) makes cleaning safer and easier.

Features

  • Anodized finish provides better heat transfer than paint
  • Strain relief on the power cable protects wiring from damage
  • Includes removable stainless steel cup (#130-76-10-10)

Components

  • #130-26: Heating Element, 150 Watt, 115 Volt
  • #130-26-1: Heating Element, 150 Watt, 230 Volt
  • #130-31: Thermostat
  • #130-38-014: Resistor
  • #130-38-2: Lens for Lamp, Red
  • #130-38-3: Lamp
  • #130-76-10-10: Cup, Stainless Steel
  • #154-00: Thermometer
  • #171-32: Knob

Specifications

  • Size: 3” × 4” × 4.5” (8 × 10 × 11 cm)
  • Weight: 2.6 lb (1.2 kg)

Part Numbers

  • #130-38-30: 115 Volt
  • #130-38-35: 230 Volt
