Product Code: 100-00
Availability: 6

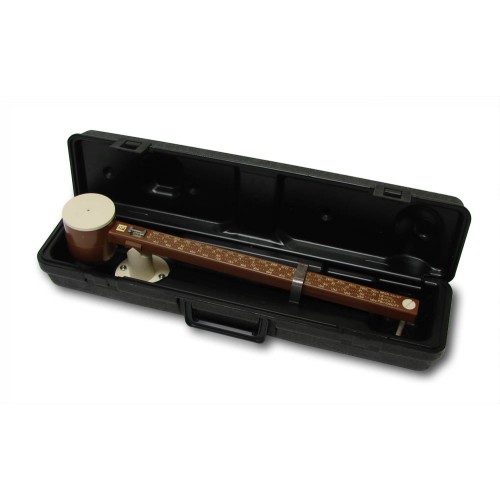

The plastic mud balance is engineered so that the mud cup at one end of the beam is balanced by a fixed counterweight at the other end, with a sliding-weight rider that moves along a graduated scale. A level bubble is mounted on the beam to ensure accurate balancing.

Features

  • Plastic will not corrode when using corrosive fluids
  • Full size, full scale mud balance
  • Two most popular scales are on top for easy reading
  • Can be easily cleaned
  • Accurate density analysis
  • Includes rugged carrying case

Specifications

  • Density
    • 8.0 - 25.0 lb / gal
    • 960 - 3000 Specific Gravity, kg/meter3
    • 60 - 189 lb /ft3
    • 420 - 1300 pounds per inch2 / 1000 ft
  • Size: 21.5" × 5" × 4.5" (55 × 13 × 11 cm)
  • Weight: 3 lb (1.4 kg)

Components

  • #100-02: Arm Assembly
  • #100-04: Leg
  • #100-05: Screw Plug
  • #100-10: Base
  • #100-20: Lid
  • #100-25: Rider
  • #100-30: Level Bubble
  • #100-40: Carrying Case
  • #100-56: Steel Shot for Calibrating

Optional

  • #100-01: 4-Scale Plastic Mud Balance Without Case

Part Number

  • #100-00
