Product Code: 165-80
Availability: 5

Available Options

Voltage:
115 Volt
230 Volt

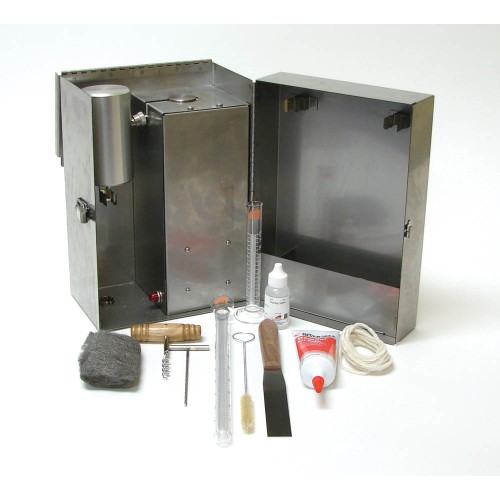

The Retort provides a method for measuring the percentage (%) of oil, water, and solids (suspended and dissolved) contained in a sample of water-based or oil-based drilling fluids and cuttings. Knowledge of oil, water, and solid content is fundamental to proper control of mud properties when considering oil/water ratios, rheology, density, filtration, and salinity. Knowledge of solids in drilling fluids is essential to evaluation of viscosity control and solids control equipment.

Features

  • Ultimate in portability
  • Proven test procedures
  • Reliability
  • Small footprint if used in laboratory
  • Accurate, tamper proof temperature controller

Specifications

  • Maximum Temperature: 1000°F (537° C)
  • Temperature Control:  Standard – Electronic Fixed Temperature Control
  • Capacity:  20 mL
  • Heating Capacity:  350 Watts
  • Power Requirement: 115 Volt at 3 Amp or 230 Volt at 1.5 Amp, 50/60 Hz
  • Size:  7.5” x 6.5” x 11.5” (19 x 17 x 29 cm)
  • Weight:  12 lb 5 oz (5.6 kg)

Components

  • #130-79-53-0990: Thermostat
  • #131-15: Graduated Cylinder, 20 mL Capacity, 0 - 100% × 1%
  • #153-03: Brush, Graduate, 1/2" × 8"
  • #165-06: Receiver Tube (JP Tube) for 20 mL Retort, Dual Scale: 0 - 100% × .5% and 0 - 20 mL × .1 mL, Certified
  • #165-14-13: T-handle Drill
  • #165-15-4: O-ring for Ultra-Torr Fitting
  • #165-41: Corkscrew
  • #165-42-001: Steel Wool, Grade 00 Fine, Package of 16 Pads
  • #165-43: Pipe Cleaner
  • #165-44-2 Anti Seize Compound, Silver, 7g Pouch
  • #165-82-1: Condenser with Ultra-Torr Fitting, 20 mL
  • #165-83: Retort Chamber with Lid, 20 mL
  • #165-88: Spatula
  • #280-00: Wetting Agent, 1 oz

For 115 Volt Only (#165-80)

  • #122-074-1: Fuse, 5 Amp, 5 mm × 20 mm
  • #165-35-1: Heating Element, 500 Watt
  • #152-37: Power Cord

For 230 Volt Only (#165-80-1)

  • #122-073-1: Fuse, 3 Amp, 5 mm × 20 mm
  • #165-36-1: Heating Element, 500 Watt
  • #152-38: Power Cord

Optional

  • #153-07: Brush for 20 mL Receiver (JP) Tube
  • #165-80-SP: Spare Parts Kit, 115 Volt
  • #165-80-1-SP: Spare Parts Kit, 230 Volt
  • #165-40: Power Cable, 115 Volt (For older model retorts)
  • #165-40-1: Power Cable, 230 Volt (For older model retorts)

Part Numbers

  • #165-80: 115 Volt
  • #165-80-1: 230 Volt
