Product Code: 165-14
Availability: 4

Available Options

Voltage_165-14:
115 Volt (165-14)
230 Volt (165-14-1)

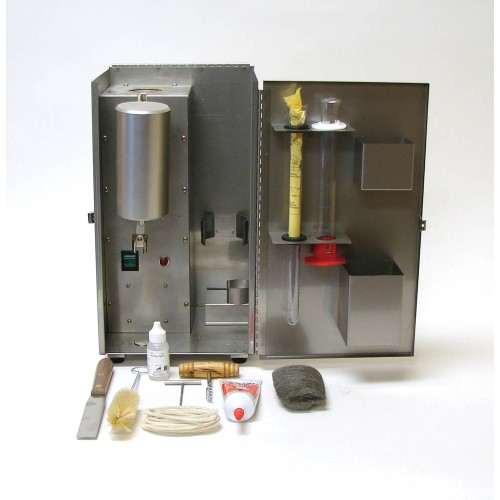

The Retort provides a method for measuring the percentage (%) of oil, water, and solids (suspended and dissolved) contained in a sample of water-based or oil-based drilling fluids and cuttings. Knowledge of oil, water, and solid content is fundamental to proper control of mud properties when considering oil/water ratios, rheology, density, filtration, and salinity. Knowledge of solids in drilling fluids is essential to evaluation of viscosity control and solids control equipment.

Features

  • Rugged, stainless steel carrying case
  • Electronic temperature control
  • Improves accuracy and readability
  • Digital display
  • Provides better reproducibility
  • Ultimate in portability
  • Small footprint if used in laboratory
  • Accurate, tamper proof temperature controller
  • Includes all accessories necessary to run a test

Specifications

  • Maximum Temperature: 1000°F (537° C)
  • Cell Capacity: 50 mL
  • Heating Capacity: 500 Watts
  • Power Requirement: 115 Volt at 3 Amp or 230 Volt at 1.5 Amp, 50/60 Hz
  • Size: 9 × 7 × 12 inches (23 × 18 × 30 cm) 20 lb (9.07 kg)
  • Weight: 20 lb (9.07 kg)

Components

  • #130-79-53-0990: Thermostat (#165-14 Only)
  • #130-79-54-0990: Thermostat (#165-14-1 Only)
  • #153-02: Brush, Graduate, 1 1/2" × 10 3/4"
  • #153-14: Graduated Cylinder, 50 mL × 1 mL
  • #165-07: Receiver Tube (JP Tube) for 50 mL Retort, Dual Scale: 0 - 100% × .5% and 0 - 50 mL × .25 mL, Certified
  • #165-14-13: T-handle Drill
  • #165-15-1: Condenser with Ultra-Torr Fitting, 50 mL
  • #165-15-4: O-ring for Ultra-Torr Fitting
  • #165-16: Retort Chamber with Lid, 50 mL
  • #165-41: Corkscrew
  • #165-42-001: Steel Wool, Grade 00 Fine, Package of 16 Pads
  • #165-43: Pipe Cleaner
  • #165-44-2 Anti Seize Compound, Silver, 7g Pouch
  • #165-88: Spatula
  • #280-00: Wetting Agent, 1 oz

For 115 Volt Only (#165-14)

  • #122-074-1: Fuse, 5 Amp, 5 mm × 20 mm
  • #165-35-1: Heating Element, 500 Watt
  • #152-37: Power Cord

For 230 Volt Only (#165-14-1)

  • #122-073-1: Fuse, 3 Amp, 5 mm × 20 mm
  • #165-36-1: Heating Element, 500 Watt
  • #152-38: Power Cord

Optional

  • #153-08: Brush for 50 mL Receiver (JP) Tube
  • #165-07: 50 mL Receiver Tube for Retort, 2-scales, 0-100% × 0.1, 0-50 mL × 0.1 mL, with certificate
  • #165-14-SP: Spare Parts Kit, 115 Volt
  • #165-14-1-SP: Spare Parts Kit, 230 Volt
  • #165-14-7: Special Legs for Use with JP Tubes
  • #165-16-4: Retort Chamber with Threaded Tube and Lid
  • #165-40: Power Cable, 115 Volt (For older model retorts)
  • #165-40-1: Power Cable, 230 Volt (For older model retorts)

Part Numbers

  • #165-14: 115 Volt
  • #165-14-1: 230 Volt
