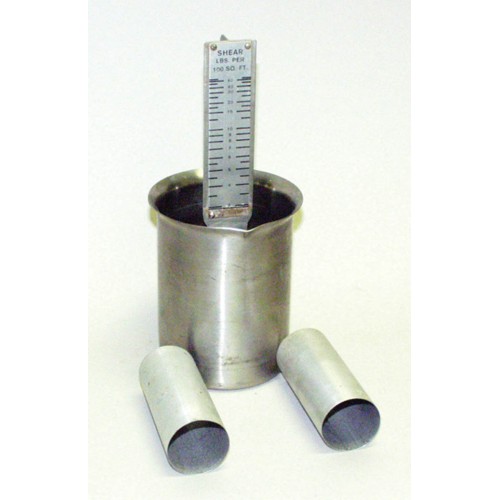

An alternative measuring device used in determining the gel strength of a drilling fluid is the Shearometer. The set includes two 5-gram, 3.5" x 1.4" hollow shear tubes and a sample cup with a graduated scale mounted in the center of the cup base. The scale measures gel strength in pounds per 100 square feet.

Features and Specifications

  • Alternative for measuring gel strength
  • Tubes: 5 g, 3.5" × 1.4"
  • Scale measures gel strength in lb / 100 ft2
  • Size: 4" × 4" × 8.5" (10 × 10 × 22 cm)
  • Weight: 11 oz (0.3 kg)

Part Number

  • #166-08
